Key Features:
Engine
Transmission
Engine Model: TEXAS TXW173F
Type of drive: Gear
Type: Four stroke, single cylinder, vertical, air cooled, direct injection, CI engine
Clutch: Wet, friction disc multiplate
Bore/Stroke (mm): 73/59
Transmission Type: Sliding mesh
Capacity: 247 cc
No of speeds: 02 forward; 01 reverse
Valve Clearance (mm): In: 0.20; Ex: 0.25
Oil grade: SAE 90
Max. Power: 4.8 hp @ 3200 rpm
Oil capacity: 1.5 Liters
Max. torque: 10.7 N-m/3100 rpm
Handle Bar: Adjustable
Compression Ratio: 20
Max. Working width: 1200 mm
Fuel: Diesel
Working depth: 80 mm
Fuel Tank Capacity: 2.2 Liters
Av. Rate of Working: 2 hr/acre
Av. fuel consumption: 0.7 l/h
Mass: 84 kg
Lube oil Grade: 15W 40
Lube oil Capacity: 0.7 Liters
Lubrication System: Pressure & splash
Fuel Injection Fiming (˚): 21±1 BTDC
Inject0r Pressure (kg/cm2): 200±5
Starting System: Manual Recoil
Mass: 30 kg
Product SKU:
Alligator 5 DP With Deep Rotary 5Hp Diesel engine
Warranty Policy:
Product Wait:
1
Product Code:
alligator-5-dp-with-deep-rotary-5hp-diesel-engine
Installation Area:
Indoor
Item Diameter:
1 cm
Brand:
Alligator 5 DP With Deep Rotary 5Hp Diesel engine
Model:
2023
Dimension:
Features:

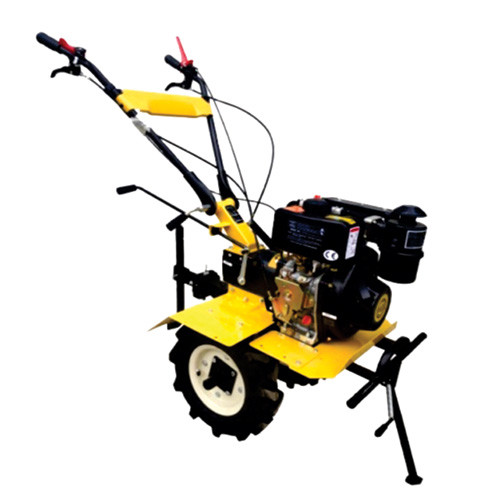

This machine is highly recommended to carry out the weeding operations and primary cultivation for small and medium scale.
Being a diesel engine and very low fuel consumption, it is highly beneficial for farmers in terms of operational cost.
It comes with multiple optional attachments, viz paddy wheel for wetland cultivation, deep rotary blades for breaking hard soil, potato ditcher to ditch potatoes from field, adjustable plough to loosen the soil or turn the soil, single plough to make small beds, ridger to form ridge between the rows.
This machine is also equipped with PTO Shaft having equal rpm of the engine can be used to drive water pump for pumping of water in field and also sprayer can be used to spray pesticides and other nutrients. It can also utilize in many ways from the engine direct shaft as prime mover.
This machine runs in diesel fuel having fuel capacity of 2.2 liters. An extra provision of side disc is provided for proper balancing safety of machine Under normal operation conditions and load, fuel consumption is around 700 ml per hour **(vary operator to operator and soil condition).
IP Rating:
IP20
