Key Features:
Engine
Transmission
Engine Model: TEXAS Power Line TD 900 E
Type of drive: Gear
Type: Four stroke, single cylinder, vertical, air cooled, direct injection, Diesel engine
Clutch: Wet, friction disc multiplate
Bore/Stroke (mm): 86/72
Transmission Type: Sliding mesh
Capacity: 418 cc
No of speeds: 02 forward; 01 reverse
Valve Clearance (mm): In: 0.20; Ex: 0.25
Oil grade: SAE 90
Max. Power: 8.71 hp @ 3300 rpm
Oil capacity: 2.2 Liters
Max. torque: 20 N-m/2900 rpm
Handle Bar: Adjustable
Compression Ratio: 19
Max. Working width: 1380 mm
Fuel: Diesel
Working depth: 100 mm
Fuel Tank Capacity: 5 Liters
Av. Rate of Working: 2 hr/acre
Av. fuel consumption: 0.9 l/h
Mass: 142 kg
Lube oil Capacity: 1.65 Liters
Lube oil Grade: 15W 40
Lubrication System: Pressure & splash
Fuel Injection Fiming (˚): 21±1 BTDC
Inject0r Pressure (kg/cm2): 200±5
Starting System: Self-starter and Manual Recoil
Battery Rating: 36 AH 12 V
Mass: 47 kg
Product SKU:

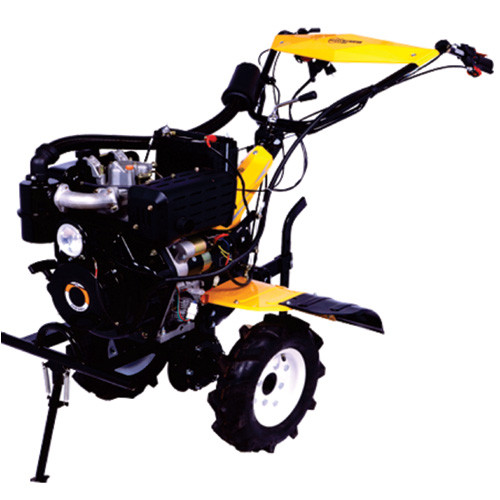

Alligator 9 DPE with Deep Rotary 8.71 hp Diesel engine
Warranty Policy:
Product Wait:
1
Product Code:
alligator-9-dpe-with-deep-rotary-871-hp-diesel-engine
Installation Area:
Indoor
Item Diameter:
1 cm
Brand:
Alligator 9 DPE with Deep Rotary 8.71 hp Diesel engine
Model:
2023
Dimension:
Features:
This machine is highly recommended to carry out the weeding operations and primary cultivation for small and medium scale.
Being a diesel engine of higher hp and very low fuel consumption, it is highly beneficial for farmers in terms of operational cost.
This machine equipped with the electric starter motor for easy start.
The machine is supplied with front rotors having a standard adjustable tilling width of 36" & 44" (inches) and optional 24" & 55" (Inches).
It comes with multiple optional attachments, viz paddy wheel for wetland cultivation, deep rotary blades for breaking hard soil, potato ditcher to ditch potatoes from field, adjustable plough to loosen the soil or turn the soil, single plough to make small beds, ridger to form ridge between the rows.
This machine can be fitted with a small trailer to pull the load up to one tons.
This machine is also equipped with PTO Shaft having equal rpm of the engine can be used to drive water pump for pumping of water in field and also sprayer can be used to spray pesticides and other nutrients. It can also utilize in many ways from the engine direct shaft as prime mover.
This machine runs in diesel fuel having fuel capacity of 5.0 liters. An extra provision of side disc is provided for proper balancing of machine Under normal operation conditions and load, fuel consumption is around 800 ml per hour **(vary operator to operator and soil condition).
