Key Features:
Engine
Transmission
Engine Model: TEXAS Power Line TGH117F
Type of drive: Gear
Type: Four stroke, single cylinder, inclined, air cooled, Petrol engine
Clutch: Wet, friction disc multiplate
Bore/Stroke (mm): 70/55
Transmission Type: Sliding mesh
Capacity: 212 cc
No of speeds: 02 forward; 01 reverse
Valve Clearance (mm): In: 0.10; Ex: 0.15
Oil grade: SAE 90
Max. Power: 6.5 hp @ 3300 rpm
Oil capacity: 2.2 Liters
Max. torque: 15.17 N-m/2700 rpm
Handle Bar: Adjustable
Compression Ratio: 8.5:1
Max. Working width: 1110 mm
Fuel: Petrol
Working depth: 100 mm
Fuel Tank Capacity: 3.6 Liters
Av. Rate of Working: 2.5 hr/acre
Av. fuel consumption: 1 l/h
Mass: 88 kg
Lube oil Grade: 15W 40
Lube oil Capacity: 600 ml
Lubrication System: Splash
Spark Plug electrode gap: 0.7 to 0.8 mm
Starting System: Manual Recoil
Mass: 15 kg
Product SKU:
Lilli 832 Without Deep Rotry 6.5 Hp Petrol engine
Warranty Policy:
Product Wait:
1
Product Code:
lilli-832-without-deep-rotry-65-hp-petrol-engine
Installation Area:
Indoor
Item Diameter:
1 cm
Brand:
Lilli 832 Without Deep Rotry 6.5 Hp Petrol engine
Model:
2023
Dimension:
Features:

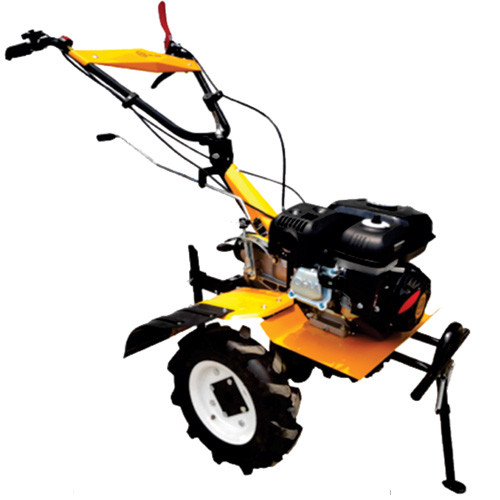

This machine is Multipurpose power weeder equipped with PTO shaft and highly recommended to carry out the weeding operations/inter cultivation/ primary cultivation etc. for small and medium scale.
Being a petrol engine of higher hp and very low fuel consumption, it is highly beneficial for farmers in terms of operational cost.
Multiple (optional) attachments, viz paddy wheel for wetland cultivation, deep rotary blades for breaking hard soil, potato ditcher to ditch potatoes from field, adjustable plough to loosen the soil or turn the soil, single plough to make small beds, ridger to form ridge between the rows, HTP Sprayer, Water pump set (open well), Seed drill etc.
The machine is supplied with front rotors having a standard adjustable tilling width of 36’’ & 44’’(inches), and optional 24’’ (inches)
This machine can be fitted with a small trailer to pull the load up to one ton (only for Agriculture related work in the field).
This machine is also equipped with PTO Shaft having equal rpm of the engine can be used to drive water pump for pumping of water in field and also sprayer can be used to spray pesticides and other nutrients. It can also utilize in many ways from the engine direct shaft as prime mover.
This machine runs in petrol fuel having fuel tank capacity of 3.6 liters. An extra provision of side disc is provided for proper balancing of machine.
Under normal operation conditions and load, fuel consumption is around 750 ml to 1 liter per hour ** ( vary operator to operator and soil condition).
IP Rating:
IP20
