Key Features:
Tank Material: Plastic (UV Resistant and Translucent)
Tank Capacity: 1000 Liter
Overall dimension (L×W×H) (m): 0.95×0.80×1.75
Colour: White
Attachment: 3-point linkage
Operation: Tractor P.T.O. driven
PTO Speed: 540 rpm
Matched Power: Minimum 50 kW (67 hp)
Sprayer Pressure: 0.3 to 0.5 MPa (0.8 MPa Max.)
Working Width: 6 to 12 m (according to customer’s demand)
Recommended height of the nozzle above ground: 400 to 1200 mm
Stir form: Refluxed with stirring
Liquid Pump: Series of MB piston diaphragm pump and Italy AR piston diaphragm pump
Spraying head type: PVC drop-proof spraying head
Nozzle: Series of SST11 Ceramics fan nozzle, (2# to 8#) IDK anti-wind nozzle
No. of nozzles: 12 to 24 (based on spraying width)
Space between nozzles: 500 mm
Angle between nozzle and main spray lance: 5˚
Fog phase angle: 110˚
Product SKU:

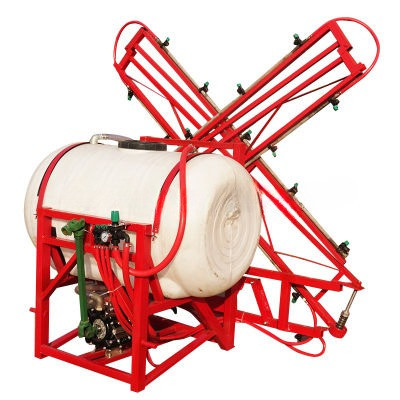

Tractor Operated Boom Sprayer
Warranty Policy:
Product Wait:
1
Product Code:
Tractor Operated Boom Sprayer
Installation Area:
Indoor
Item Diameter:
1 cm
Brand:
Tractor Operated Boom Sprayer
Model:
2023
Dimension:
Features:
This spraying machine is mating with more than 67 horsepower tractor provided with rear PTO shaft and used in spraying operation of the crop.
It is used mainly to spray herbicide, insecticide and Liquid fertilizer etc. for field crops like corn, wheat and soybean etc.
It is also used to clean and sterilize farm machinery & implement, all vehicles and livestock shed by connecting with spray gun (optional).
Advantages of this spraying machine include simple structure, convenient operation & maintenance and quick hitch with the tractor.
Liquid pump is diaphragm pump with high pressure and stable flow rate. Besides, it can be operated under the condition of no water and possess long service life.
Spray tank is made of glass reinforced plastics and solid and resistant to corrosion of all pesticides.
Spray pipe is made of stainless steel and never rusts.
The whole spray boom system uses swinging shock absorption structure in favor of stable operation of spray boom.
IP Rating:
IP20
